HR 8714

36.9 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

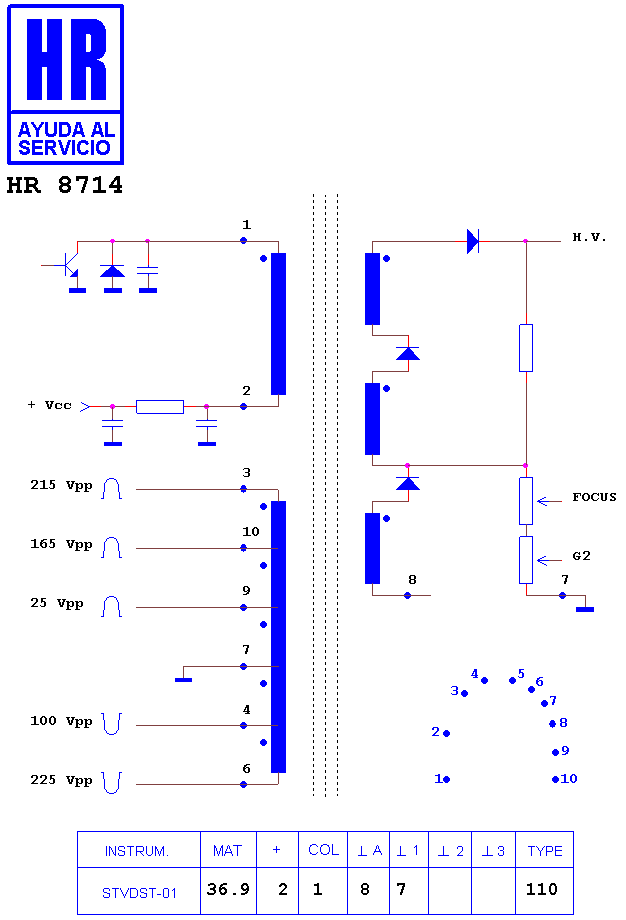

Schematic diagram for HR 8714
schematic (archived)

Manufacturer equivalents (5)

1352.5046 · 1352.5046A · 50H0000215 · FAT30795 · HR 8714

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8131 · HR 7955 · HR 8473 · HR 80142 · HR 7949 · HR 80059 · HR 8506 · HR 80042 · HR 8220 · HR 8519 · HR 7699 · HR 7982

Fitted to (1)

CURTIS MATHES CM 27101 S
