HR 8815

43.8 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

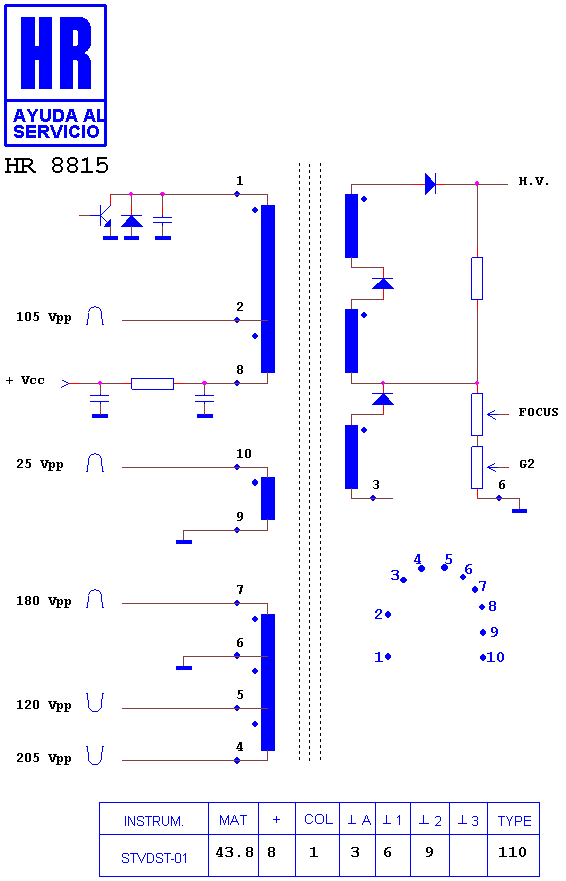

Schematic diagram for HR 8815
schematic (archived)

Manufacturer equivalents (2)

F1754CE · RTRNF1754CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6701 · HR 5739 · HR 80142 · HR 8473 · HR 80042 · HR 8885 · HR 80059 · HR 7699 · HR 8830 · HR 8829 · HR 8894 · HR 8893

Fitted to (6)

SHARP 33 S 21 A · SHARP 33 S 21 A 1 · SHARP 33 S 21 AS · SHARP CHASIS 8 P LP 1 · SHARP DV 7988 X · SHARP SV 3320 H
