HR 8894

36.9 kV maximum anode voltage · 110° deflection · 5 windings · 410 g

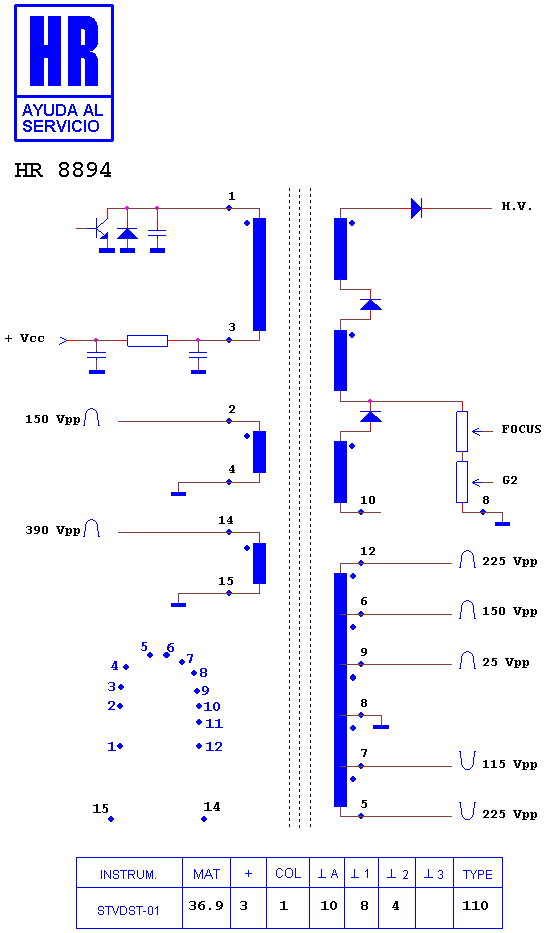

Schematic diagram for HR 8894
schematic (archived)

Manufacturer equivalents (5)

F0054CE · F0054PE · F0054PE-M · RTRNF0054CEZZ · RTRNF0054PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7955 · HR 8714 · HR 80142 · HR 6701 · HR 8815 · HR 5714 · HR 8473 · HR 5739 · HR 8131 · HR 8506 · HR 7949 · HR 8767

Fitted to (13)

SHARP 25 A-M 100 H · SHARP 25 A-M 120 · SHARP 25 AM 050 · SHARP 25 AM 100 · SHARP 25 AM 120 · SHARP 25 AS 100 · SHARP 25 AS 100 H · SHARP 25 AS 120 · SHARP 25 AS 200 · SHARP 26 AM 120 · SHARP 9 C 140 · SHARP C 26 S 20 · SHARP CC 26 S 20
