HR 80142

50.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

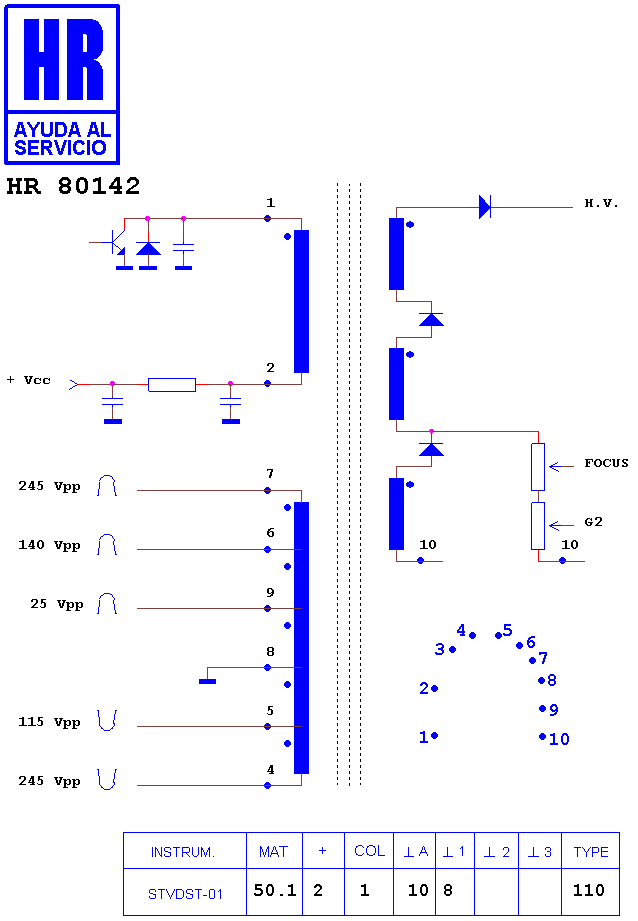

Schematic diagram for HR 80142
schematic (archived)

Manufacturer equivalents (4)

F0049CE · F0049ME · F0049ME-H · RTRNF0049MEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80059 · HR 80042 · HR 7955 · HR 7982 · HR 8506 · HR 8893 · HR 80063 · HR 7987 · HR 8473 · HR 8714 · HR 7700 · HR 8519

Fitted to (2)

SHARP 27 RS 50 · SHARP 29 MR 70
