HR 6620

type ST · family 1BP1 · 41.7 kV maximum anode voltage · 110° deflection · 5 windings · 380 g

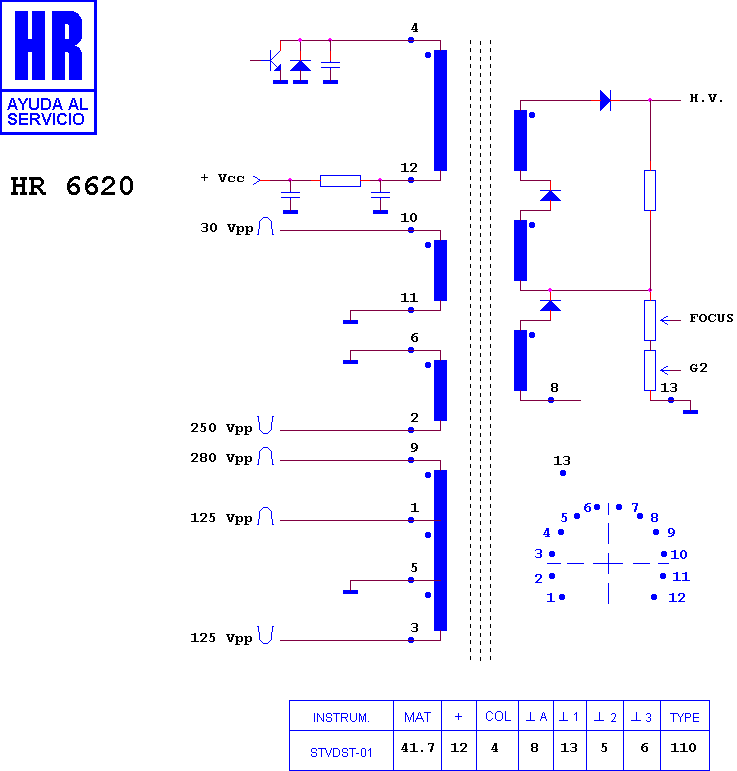

Schematic diagram for HR 6620
schematic

Manufacturer equivalents (10)

003321116 · 444 50 0144 · 444500144A2 · F18N.0003 · FAT30513 · H 32-19 · HR 6620 · KN30513 · RO 414 · TR 414

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80059 · HR 80142 · HR 8473 · HR 7982 · HR 7130 · HR 80063 · HR 7955 · HR 7700 · HR 8506 · HR 80051 · HR 6144 · HR 7861

Fitted to (12)

METZ 63 TB 72 · METZ 696 T 1 XLS · METZ 70 TB 73 · METZ 72 TC 75 · METZ CHASIS 696 G · METZ CHASIS 696 G 1-0178 A 2 · METZ CHASIS 696 G-0178 · METZ CHASIS 696 G-7179 · METZ CLASSIC SF · METZ CLASSIC SF PIP · METZ NORDKAP S · METZ SANTOS SF
