HR 7861

type ST · family 1CAP · 21.9 kV maximum anode voltage · 110° deflection · 4 windings · 276 g

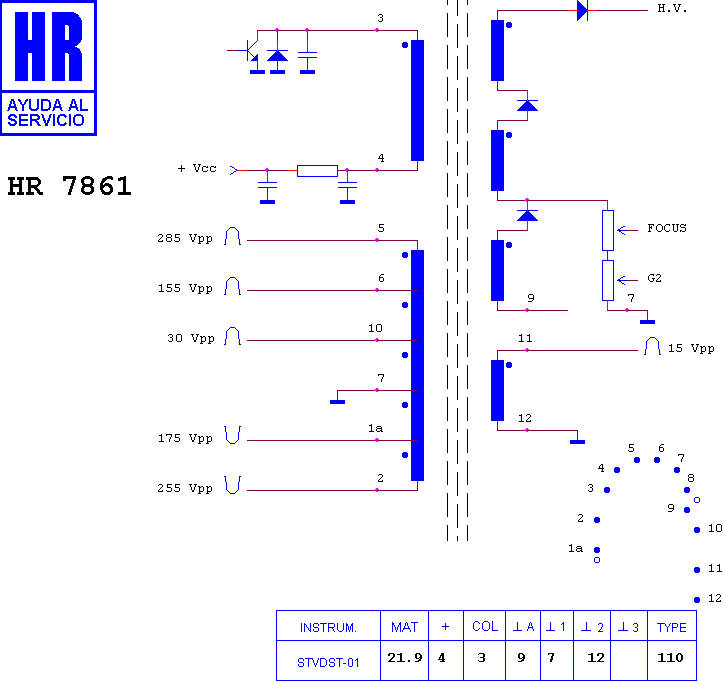

Schematic diagram for HR 7861
schematic

Manufacturer equivalents (6)

002 651 0498 · 26510498 · F 1651 CE · FAT3879 · ME/6169-00 · RTRNF1651CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8893 · HR 80063 · HR 8473 · HR 7955 · HR 80142 · HR 8212 · HR 7699 · HR 7982 · HR 6603 · HR 6285 · HR 8664 · HR 6620

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SHARP HE 411 FPD
