HR 6285

type ST · family 1IS1 · 22.8 kV maximum anode voltage · 110° deflection · 4 windings · 412 g

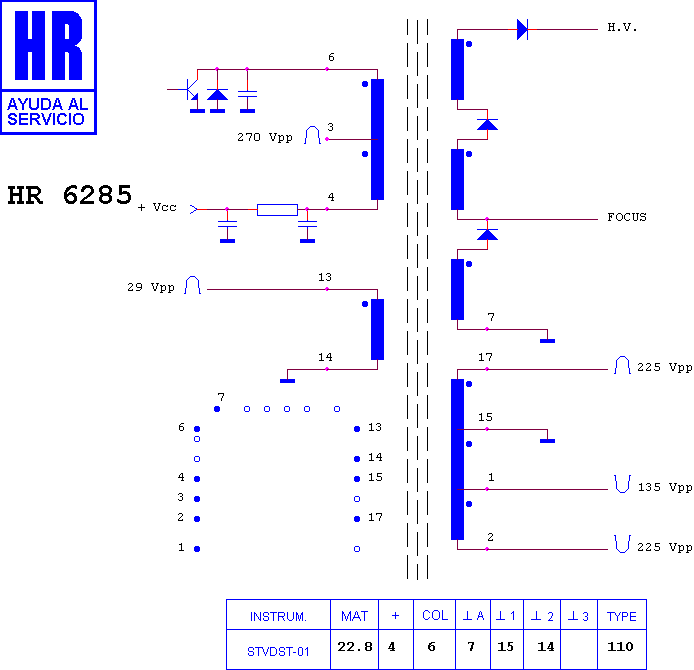

Schematic diagram for HR 6285
schematic

Manufacturer equivalents (16)

003390009 · 140 17022 · 140 17056 · 3106 108 32162 · 3122 138 36712 · 36710 · 36711 · 36712 · 36713 · 36714 · 36715 · 4806 140 17022 · 4806 140 17056 · 4822 140 17022 · FAT30208 · KN30208

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8664 · HR 6298 · HR 8519 · HR 8700 · HR 8812 · HR 8473 · HR 8732 · HR 8714 · HR 7699 · HR 8894 · HR 80024 · HR 8775

Fitted to (11)

PHILIPS 140.17022 · PHILIPS 21 CT 7470 · PHILIPS 21 CT 7675 · PHILIPS 21 CT 7678 · PHILIPS 28 CT 7690 · PHILIPS 28 CT 7692 · PHILIPS 28 CT 7693 · PHILIPS 28 CT 7694 · PHILIPS CHASIS CTO · PHILIPS CHASIS CTO-C · PHILIPS CHASIS CTO-L
