HR 7076

type ST · family 1AP2 · 4 windings · 320 g

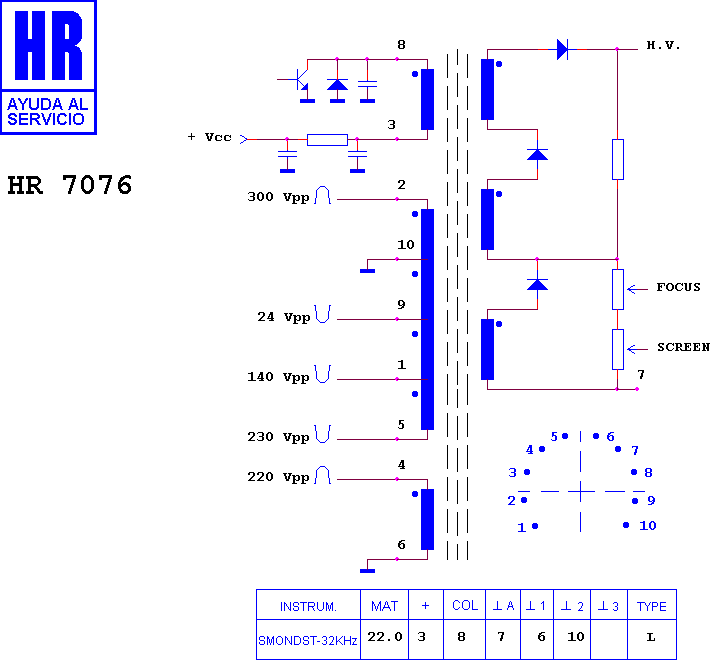

Schematic diagram for HR 7076
schematic

Manufacturer equivalents (4)

1105.0148 · 28024520 · FAT30497 · KN30497

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8775 · HR 8336 · HR 80024 · HR 7767 · HR 8812 · HR 8732 · HR 8700 · HR 8827 · HR 7099 · HR 8960 · HR 7165 · HR 8473

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

HANTAREX MONITOR
