HR 8898

24.5 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

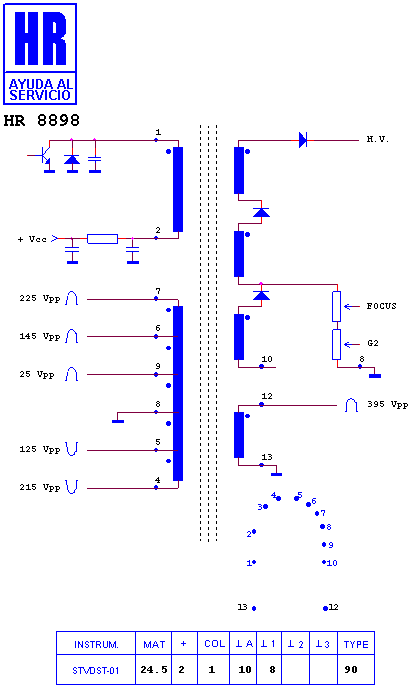

Schematic diagram for HR 8898
schematic (archived)

Manufacturer equivalents (3)

F0124PE · F0124PE-M · RTRNF0124PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7746 · HR 7730 · HR 8915 · HR 7235 · HR 7817 · HR 8587 · HR 7816 · HR 8568 · HR 7434 · HR 8930 · HR 7811 · HR 7832

Fitted to (5)

SHARP 19 H-M 100 S · SHARP 19 H-M 60 · SHARP 19 HM 100 S · SHARP 19 HM 60 · SHARP 20 MH 10
