HR 8930

22.1 kV maximum anode voltage · 90° deflection · 4 windings · 256 g

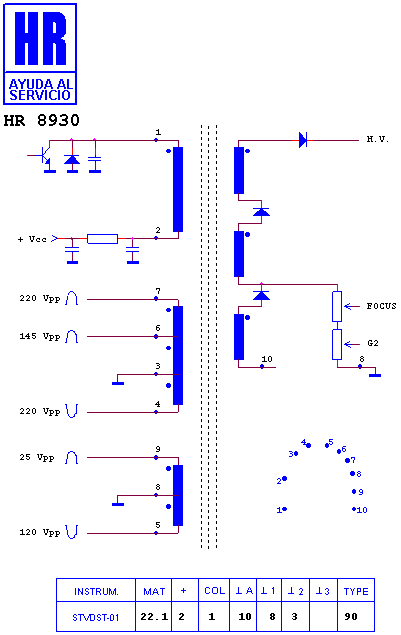

Schematic diagram for HR 8930
schematic (archived)

Manufacturer equivalents (4)

BSC21-2604S · F0213PE · F0213PE-B · RTRNF0213PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7746 · HR 8898 · HR 8587 · HR 7434 · HR 8568 · HR 7832 · HR 5741 · HR 7847 · HR 5739 · HR 5714 · HR 7797 · HR 8660

Fitted to (7)

PHILCO MT 2102 · PHILCO MT 2102 S · SHARP 19 R-M 100 · SHARP 19 R-M 100 S · SHARP 19 U-M 100 · SHARP 20 MR 10 · SHARP CHASIS SN 010
