HR 7847

type ST · family 1CAP · 23.1 kV maximum anode voltage · 90° deflection · 3 windings · 270 g

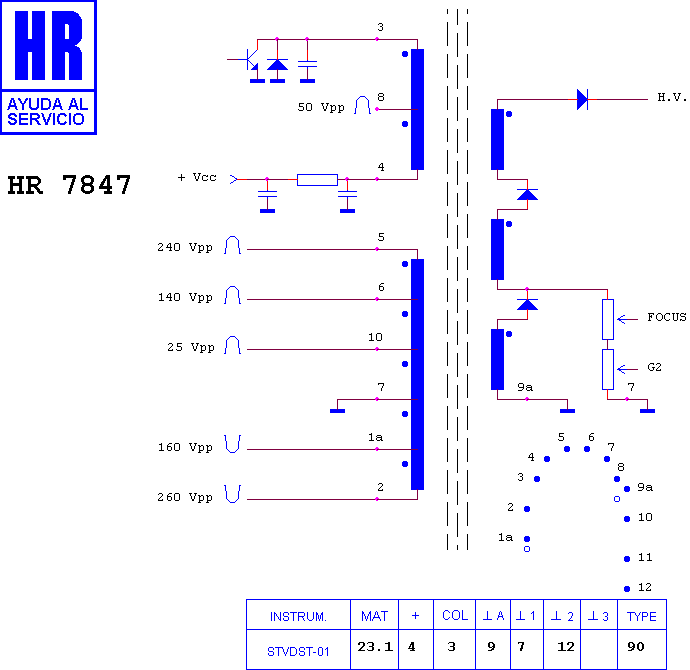

Schematic diagram for HR 7847
schematic

Manufacturer equivalents (10)

002 651 0389 · 26510389 · F 1417 CE · F 1470 CE · F 1470 CE-A · FAT3863 · ME/6153-00 · MSH-1FCF09 · RTRNF1417CEZZ · RTRNF1470CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7756 · HR 7763 · HR 7759 · HR 8898 · HR 8420 · HR 7636 · HR 7797 · HR 7746 · HR 8930 · HR 8568 · HR 7880 · HR 6255

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

SHARP C 2110 G · SHARP CHASIS 4 P SR 2 · SHARP DV 2110 G · SHARP DV 2120
