HR 7763

type ST · family 1CAP · 19.2 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

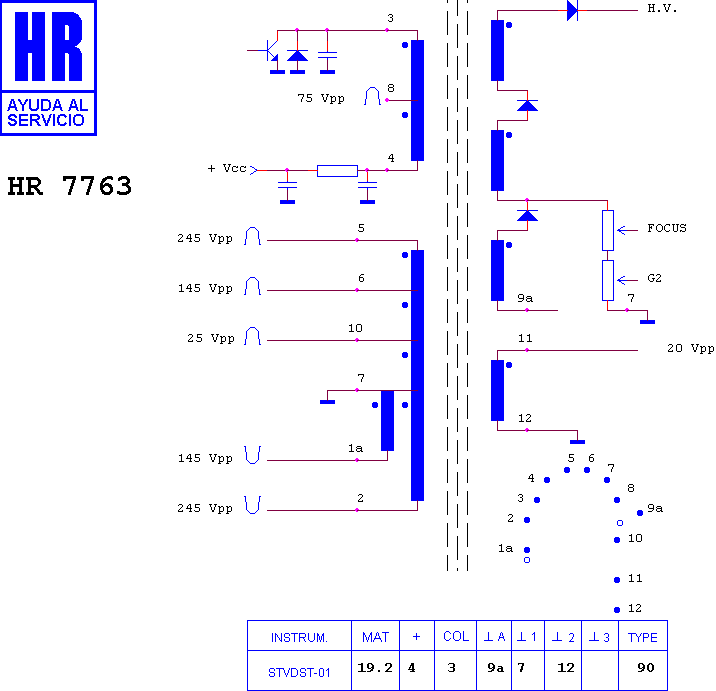

Schematic diagram for HR 7763
schematic

Manufacturer equivalents (7)

002 651 0533 · 26510533 · F 1691 CE · FAT3881 · KN3881 · ME/6171-00 · RTRNF1691CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7748 · HR 7812 · HR 7847 · HR 7752 · HR 7773 · HR 7887 · HR 6255 · HR 7890 · HR 6253 · HR 7725 · HR 7602 · HR 8568

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

OTTO-VERSAND 348 756 · OTTO-VERSAND 348 757 · OTTO-VERSAND CV 2021 GS · SHARP C 5180 · SHARP C 5180 SN · SHARP C 5186 · SHARP C 5186 SN · SHARP C 5480 · SHARP C 5480 SN · SHARP CHASIS 7 P SR 1 · SHARP CV 2021 · SHARP CV 2021 G · SHARP CV 2021 S · SHARP WC 047 X
