HR 8112

type ST · family 1XP1 · 20 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

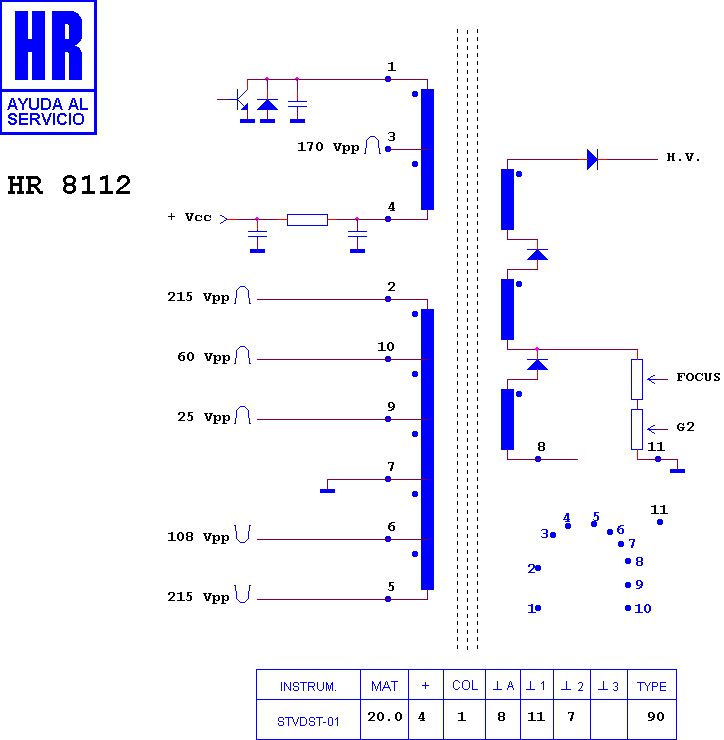

Schematic diagram for HR 8112
schematic

Manufacturer equivalents (14)

003141053 · 003141055 · 3210-61301 · 321061301-000 · 4148 · B 32 3448 · B 32 3448 001 · B 32 3448 003 · B 32 3448 003 000 · B 32 3448 004 · FAT30252 · KN30252 · KT 3006 · TVC/26

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8113 · HR 7890 · HR 7636 · HR 6103 · HR 6021 · HR 7748 · HR 7602 · HR 6137 · HR 8568 · HR 6263 · HR 6020 · HR 7887

Fitted to (7)

PHILCO CPH 04 · PHILCO PC 1437 · PHILCO PC 1438 · PHILCO PC 1439 · PHILCO PC 1441 · PHILCO PC 1442 · PHILCO PC 2039
