HR 7636

type ST · family 1YP · 24.6 kV maximum anode voltage · 90° deflection · 4 windings · 384 g

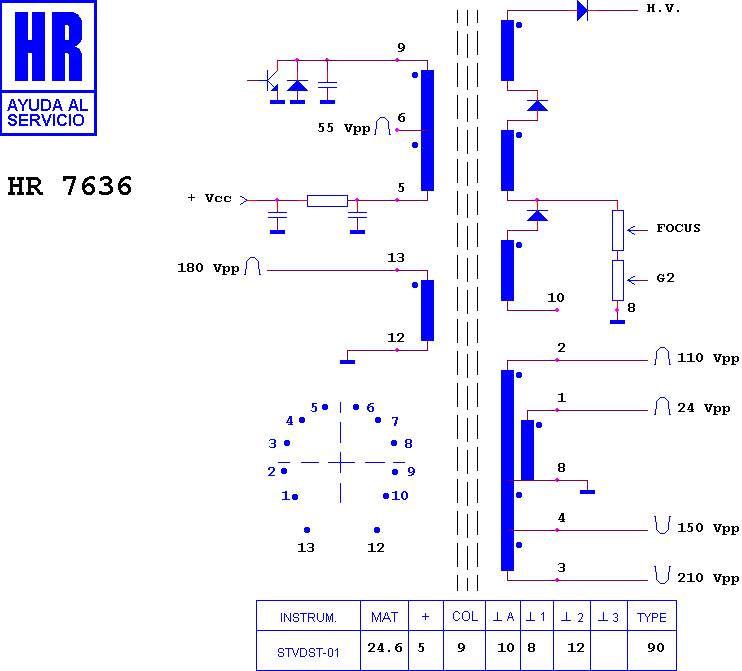

Schematic diagram for HR 7636
schematic

Manufacturer equivalents (16)

043220011 · 043220011 W · 0432200111 · 043220013 · 043220013 W · 0432200131 · 043220015 · 3220011 · 3220013 · 3220015 · 43220011 · 432200111 · 43220013 · 432200131 · 43220015 · 432200151

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7199 · HR 6263 · HR 8568 · HR 8113 · HR 7890 · HR 6103 · HR 8112 · HR 6021 · HR 7787 · HR 7618 · HR 7602 · HR 6020

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

ORION 21 SR · ORION 21 ST
