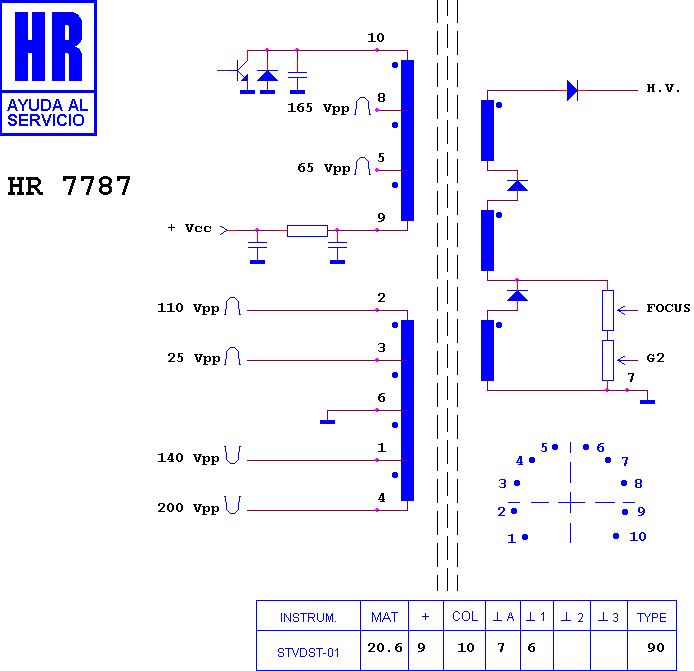

HR 7787

type ST · family 1NP1 · 20.6 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (14)

003021001 · 003301024 · 240120.4065 · 2859 144 010 · 32859 144 010 · 4454 · 604 200 000 171 · FAT 30280 · FCC 2015 FL · KN 30280 · KT 7003 · RO 157 · TR 157 · TVC/12

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7204 · HR 7254 · HR 7879 · HR 7477 · HR 7891 · HR 7890 · HR 7636 · HR 7199 · HR 8758 · HR 7280 · HR 7888 · HR 7887

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (12)

BROOKSONIC CTV 20" · BROOKSONIC CTVG 5454 B · BROOKSONIC CTVG 5454 LST · BROOKSONIC CTVG 5454 LSTC · CCE HPS 2010 · PROFILO CHASIS 3 SISTEM · PROFILO CHASIS 3 SYSTEM · PROFILO CHASIS SAMSUNG 51 · PROFILO STR 451 · SAMSUNG CHASIS 51 · TELRA PROFILO 3 SYSTEM 20" · TELRA PROFILO 3 SYSTEM 2015
