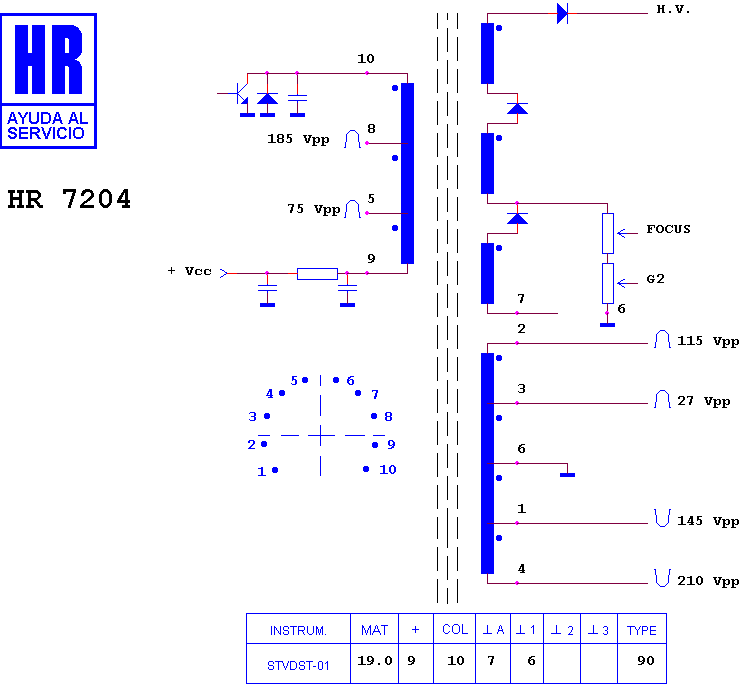

HR 7204

type ST · family 1NP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

HCF A 010

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7787 · HR 7879 · HR 7477 · HR 7254 · HR 7891 · HR 7890 · HR 7636 · HR 8758 · HR 7887 · HR 7199 · HR 7748 · HR 7853

Search this part in the full database
