HR 7891

type ST · family 1XP1 · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

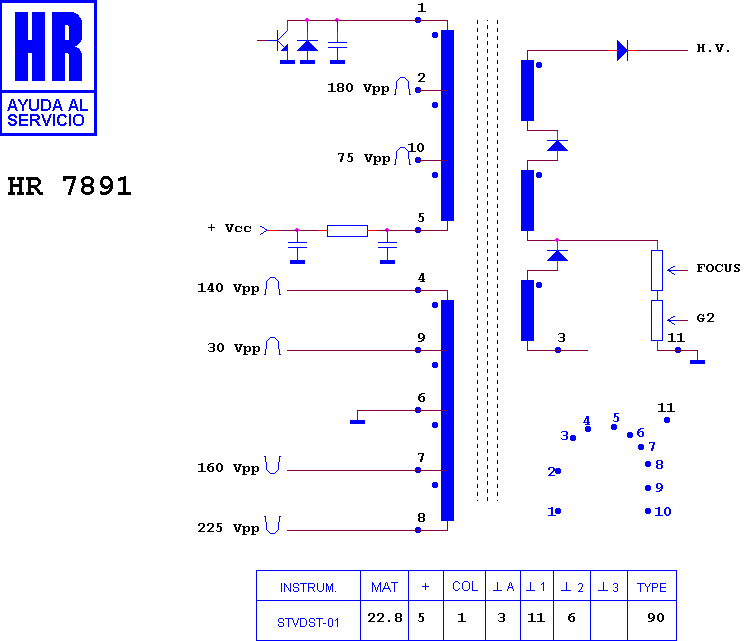

Schematic diagram for HR 7891
schematic

Manufacturer equivalents (3)

KT 6023 · TAT 2101 A · TAT2101

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7199 · HR 7636 · HR 7787 · HR 7477 · HR 7254 · HR 7204 · HR 7888 · HR 7041 · HR 7879 · HR 7890 · HR 8692 · HR 7654

Fitted to (5)

CCE HPS 2081 B · CCE HPS 2181 · CCE HPS 2181 A · CCE HPS 2181 B · CCE HPS 2191
