HR 8692

4 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

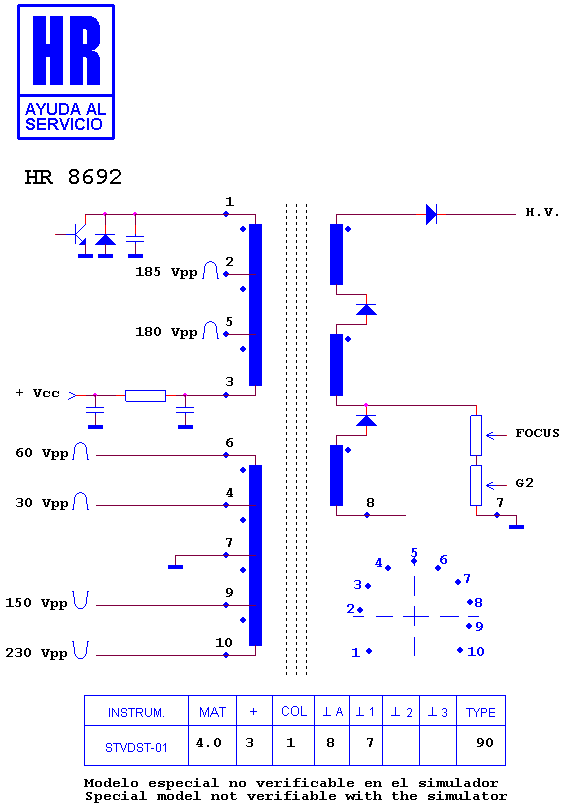

Schematic diagram for HR 8692
schematic (archived)

Manufacturer equivalents (4)

FC31A04 · TCC30B02 · TCG30B02 · TCG30B13

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7891 · HR 7199 · HR 6103 · HR 7254 · HR 7636 · HR 8113 · HR 8156 · HR 7787 · HR 7890 · HR 7879 · HR 7477 · HR 7041

Fitted to (7)

BRASSONIC CT 1000 · MXO MX TDN 10 · MXO MX TMD 10 · MXO MX TND 10 · PEKONIC CT 100 · PEKONIC CT 1000 · SAMSUNG CB 230 Z
