HR 8113

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

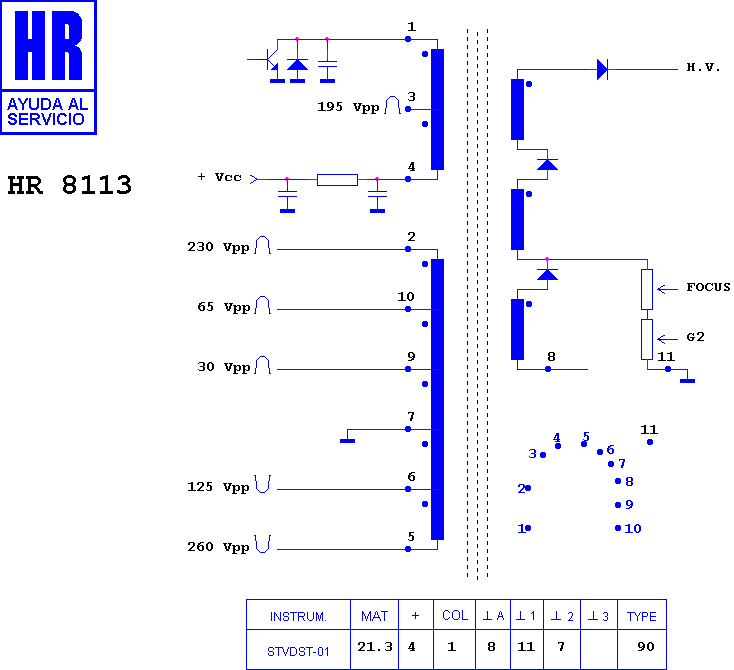

Schematic diagram for HR 8113
schematic

Manufacturer equivalents (11)

003141052 · 154 177 W · 3210-61306 · 4149 · B 32 3449 · B 32 3449 003 · B 32 3449 003 000 · FAT 30253 · KN 30253 · KT 3007 · TVC/27

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7749 · HR 8112 · HR 7274 · HR 7847 · HR 7280 · HR 7887 · HR 7748 · HR 8692 · HR 7752 · HR 6255 · HR 7310 · HR 8758

Fitted to (33)

PHILCO 20 R 37 · PHILCO 20 R 38 · PHILCO 20 R 42 · PHILCO 2037 · PHILCO 2038 · PHILCO 2039 · PHILCO 21 R 42 · PHILCO 21 R 64 · PHILCO 2138 · PHILCO 2162 · PHILCO CHASIS CPH 04 · PHILCO CPH 04 · PHILCO PACM 21 R 42 · PHILCO PACM 21 R 64 · PHILCO PACM 2162 · PHILCO PACM 262 · PHILCO PAVM 2166 · PHILCO PC 20 R · PHILCO PC 20 R 36 · PHILCO PC 20 R 37 · PHILCO PC 20 R 38 · PHILCO PC 20 R 42 · PHILCO PC 2037 · PHILCO PC 2038 · PHILCO PC 2039 · PHILCO PC 2041 · PHILCO PC 2042 · PHILCO PC 21 R 42 · PHILCO PC 21 R 64 · PHILCO PC 2138 · PHILCO PC 2142 · PHILCO TACM 2162 · PHILCO TACM 262
