HR 6255

type ST · family 1BP1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

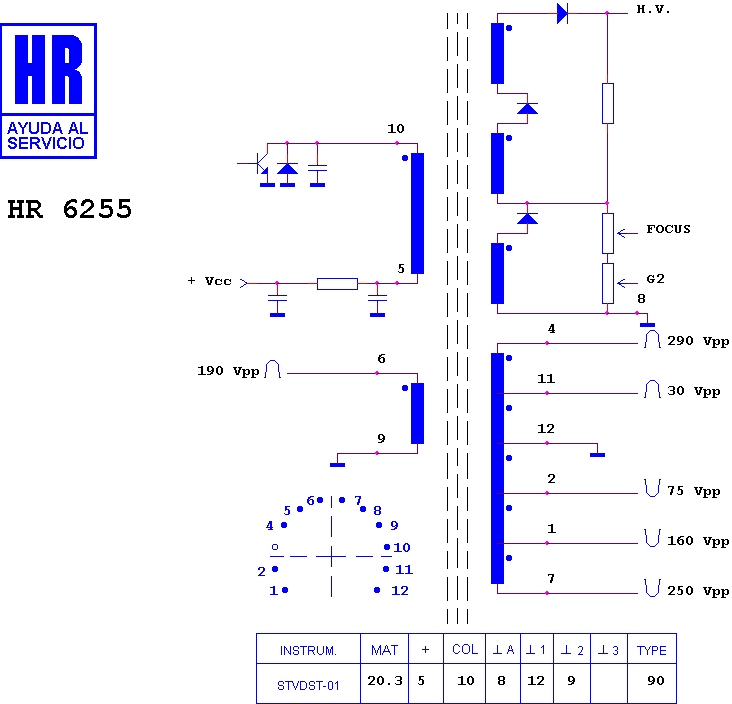

Schematic diagram for HR 6255
schematic

Manufacturer equivalents (6)

003331112 · D 260/37 · FAT3841 · ME/6259-00 · RO 099 · TR 099

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6020 · HR 6103 · HR 6021 · HR 6137 · HR 8568 · HR 8113 · HR 6070 · HR 7725 · HR 7602 · HR 7847 · HR 6263 · HR 7812

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
