HR 7621

type ST · family 1XP1 · 23.4 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

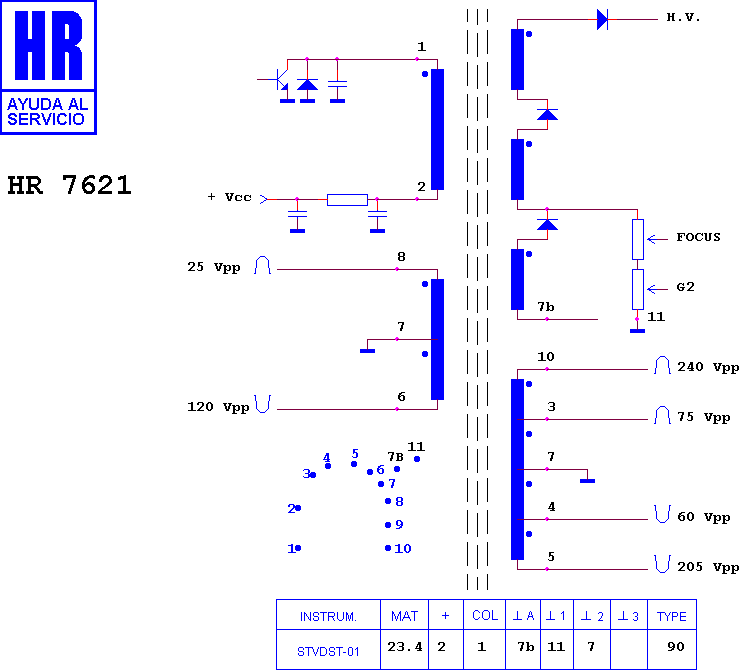

Schematic diagram for HR 7621
schematic

Manufacturer equivalents (3)

2434651 · 2434651 H · SP 143

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7235 · HR 7757 · HR 6253 · HR 6558 · HR 8301 · HR 7749 · HR 8093 · HR 7144 · HR 8500 · HR 7530 · HR 7617 · HR 7088

Search this part in the full database
