HR 8826

18.9 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

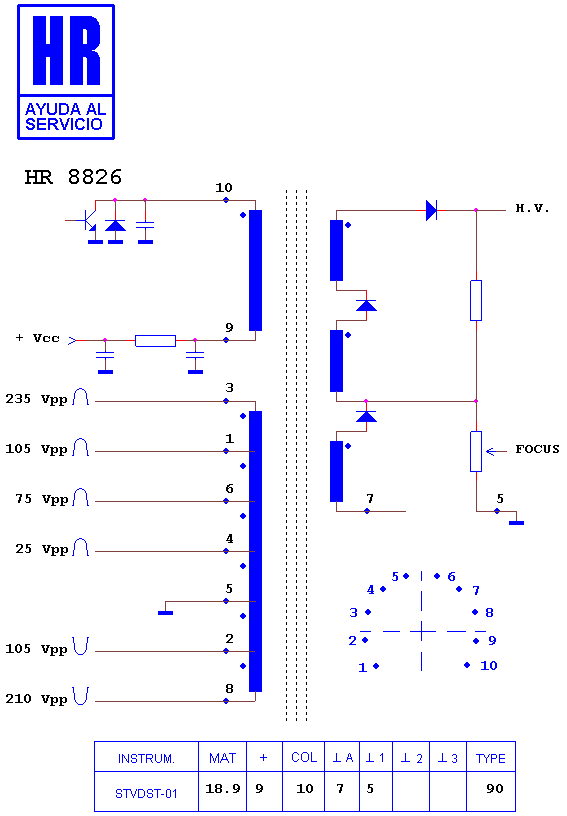

Schematic diagram for HR 8826
schematic (archived)

Manufacturer equivalents (9)

1352.3022 · 1352.3022A · 1352.3022B · 276-28716 · 276-28716.050 · 287-16050 · 28716 · HR 8826 · KN30732

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8093 · HR 7617 · HR 7618 · HR 7725 · HR 7602 · HR 6253 · HR 5737 · HR 7235 · HR 7274 · HR 7748 · HR 7763 · HR 7621

Fitted to (4)

LOEWE / LOEWE-OPTA CALIDA 5255 · LOEWE / LOEWE-OPTA CHASIS E 3000 · LOEWE / LOEWE-OPTA XELIOS 5055 · LOEWE / LOEWE-OPTA XELOS 5055
