HR 7617

type ST · family 1XP1 · 16.1 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

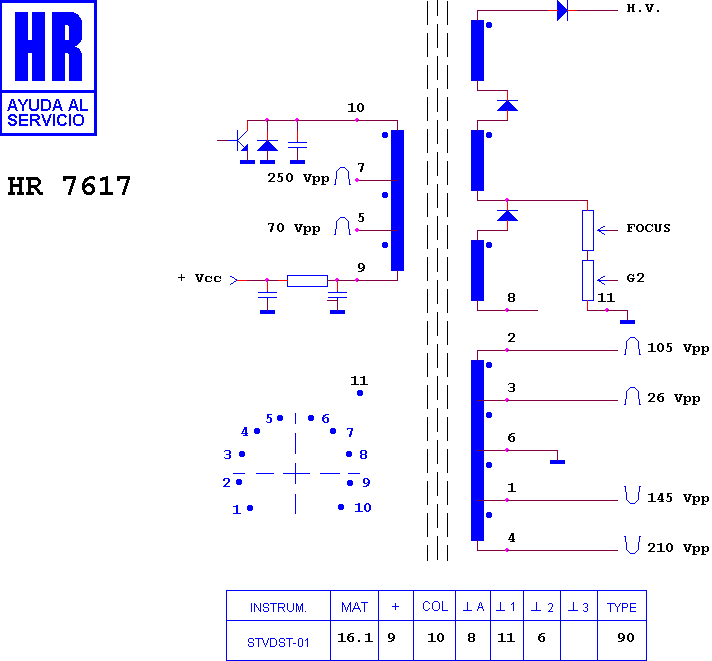

Schematic diagram for HR 7617
schematic

Manufacturer equivalents (2)

AA26-30001L · FCM 20 A 023

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7618 · HR 8093 · HR 8826 · HR 7725 · HR 7310 · HR 7274 · HR 7280 · HR 6137 · HR 7316 · HR 7602 · HR 6253 · HR 7315

Fitted to (4)

SAMSUNG CB 5318 T · SAMSUNG CB 53187 · TELEFUNKEN 1370 · TELEFUNKEN TVC
