HR 7761

type ST · family 1CAP · 17.5 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

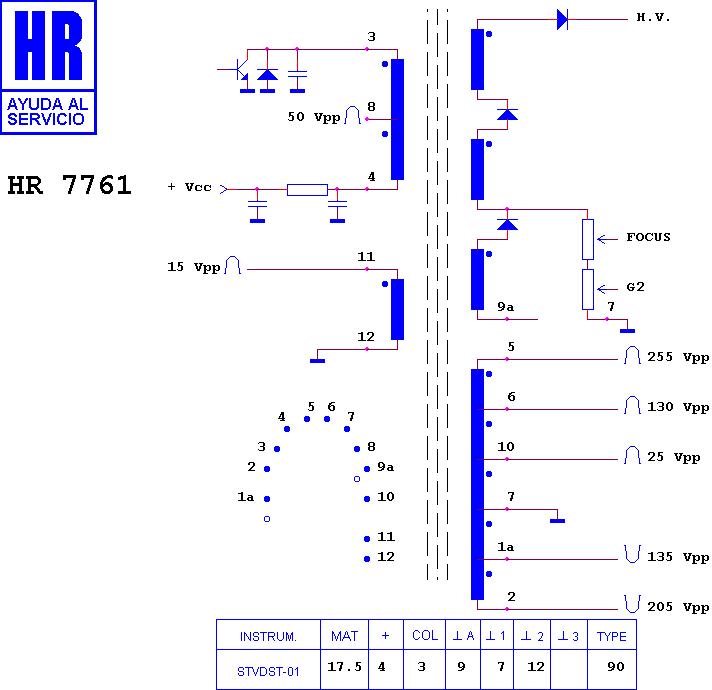

Schematic diagram for HR 7761
schematic

Manufacturer equivalents (10)

002 651 0401 · 022 651 0401 · 226510401 · 26510401 · F 1483 CE · FAT3864 · KN3864 · ME/6154-00 · MSH-1FCF11 · RTRNF1483CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7773 · HR 7812 · HR 7752 · HR 6070 · HR 7310 · HR 7316 · HR 6474 · HR 7172 · HR 8420 · HR 7602 · HR 8093 · HR 6255

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SHARP C 4200 M · SHARP DV 4205 · SHARP DV 4205 S
