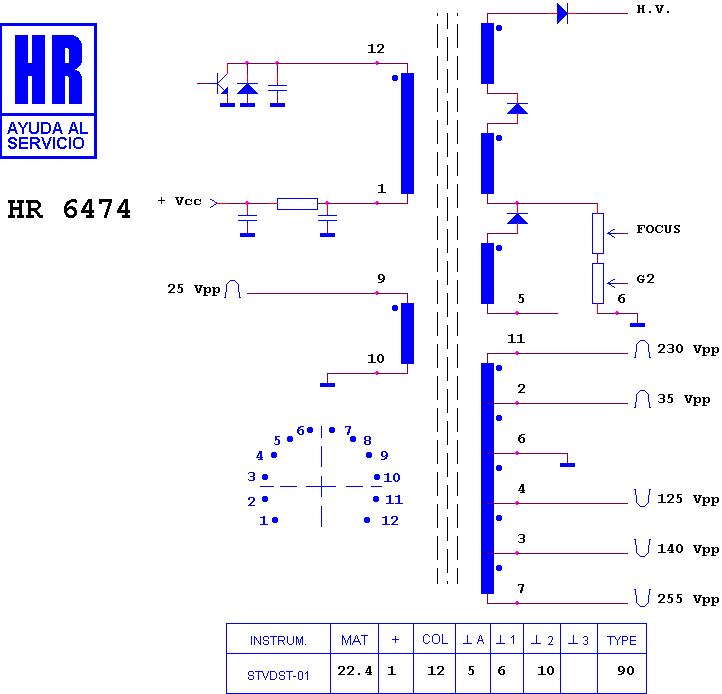

HR 6474

type ST · family 1BP1 · 22.4 kV maximum anode voltage · 90° deflection · 4 windings · 412 g

Manufacturer equivalents (5)

0036 4085 0003 · 364085-0003 · 364085-3 · 4835 140 67113 · 4835 140 67122

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8472 · HR 6357 · HR 7730 · HR 7817 · HR 7811 · HR 7264 · HR 7172 · HR 7273 · HR 7275 · HR 8067 · HR 7756 · HR 7797

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

MAGNAVOX 25 E 501 · MAGNAVOX 25 E 50100 AA · MAGNAVOX 25 E 502 · MAGNAVOX 25 TRC 10101 · MAGNAVOX TR 2510 C 101
