HR 7602

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

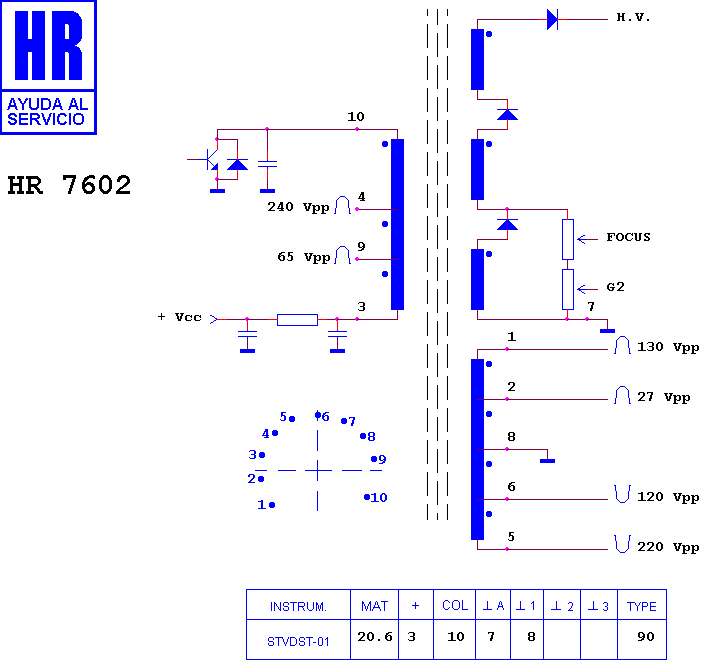

Schematic diagram for HR 7602
schematic

Manufacturer equivalents (7)

154 122 F · 154027A · 154122G · 154126A · 154183F · MSH-D056G · MSH-D560G

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7904 · HR 7498 · HR 8568 · HR 7636 · HR 7890 · HR 7274 · HR 8113 · HR 7725 · HR 6021 · HR 6103 · HR 7280 · HR 7847

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
