HR 80320

type ST · family 1YD · 4 windings · 410 g

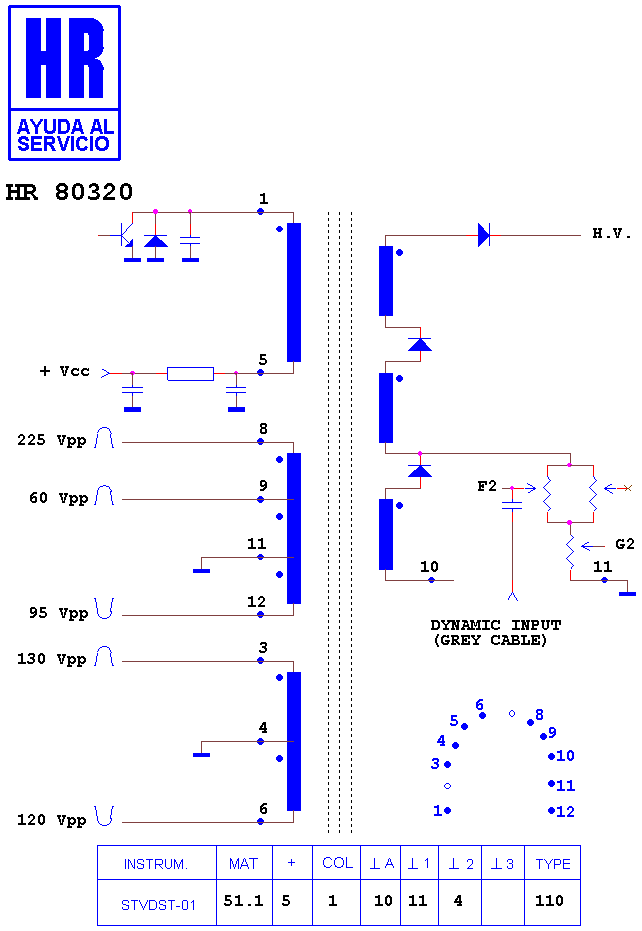

Schematic diagram for HR 80320
schematic (archived)

Manufacturer equivalents (6)

1392.9011 · 1392.9011 A · 1392.9011 B · 1392.9035 · 308 20641 · 3104 308 20641

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80040 · HR 8388 · HR 8794 · HR 80069 · HR 8552 · HR 7602 · HR 80077 · HR 7008 · HR 8274 · HR 6254 · HR 8860 · HR 7617

Fitted to (6)

PHILIPS 34 PT 9420 · PHILIPS 34 PT 9420/57 R · PHILIPS 34 PT 9420/61 R · PHILIPS 34 PT 9420/69 R · PHILIPS 34 PT 9420/71 R · PHILIPS 34 PT 9420/93 R
