HR 8274

type ST · family 1YP · 24.1 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

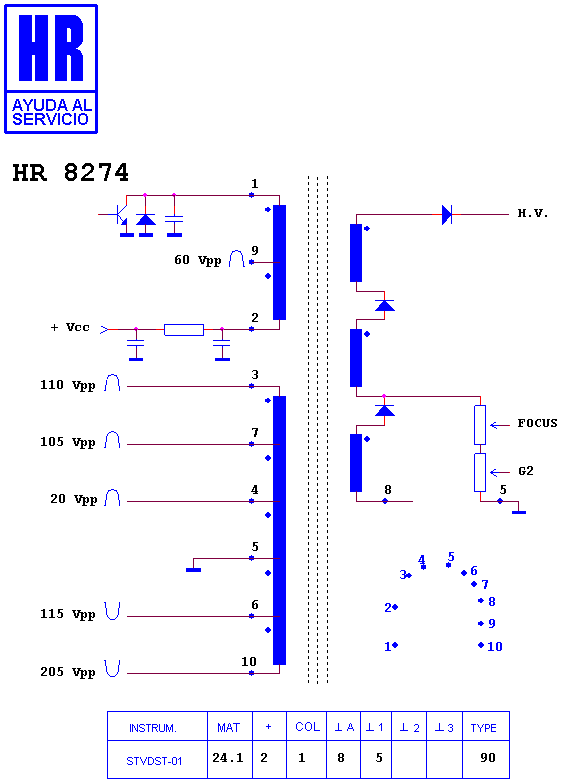

Schematic diagram for HR 8274
schematic

Manufacturer equivalents (2)

TAT 3401 · TAT 3401 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7654 · HR 80136 · HR 7000 · HR 80320 · HR 7904 · HR 7498 · HR 7618 · HR 7602 · HR 7761 · HR 6021 · HR 7617

Fitted to (4)

CCE HPS 33 B · CCE HPS 33 C · CCE HPS 33 R · CCE HPS 33 RB
