HR 7498

type ST · family 1XP1 · 22.1 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

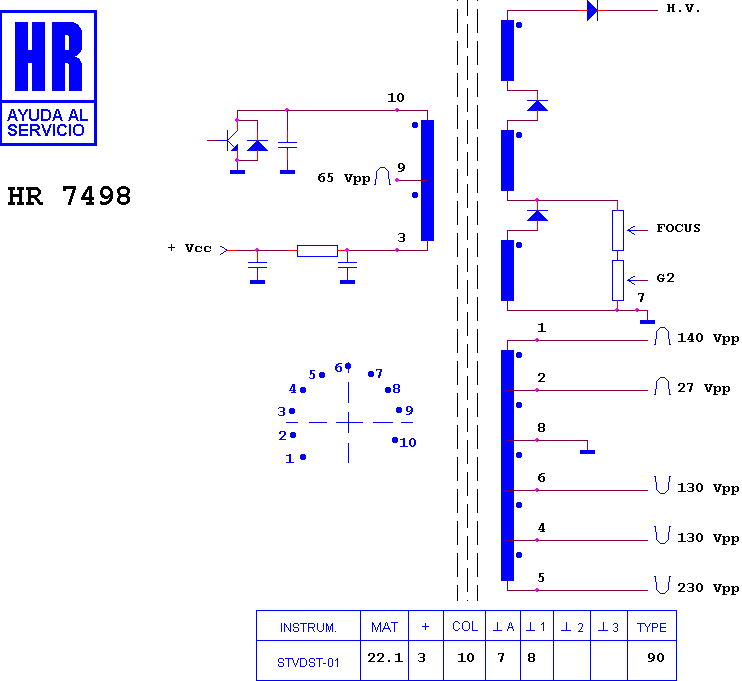

Schematic diagram for HR 7498
schematic

Manufacturer equivalents (5)

154 122 E · 154122D · 154183E · SKFB62110 · SP 112

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7904 · HR 7602 · HR 8274 · HR 80320 · HR 7199 · HR 7000 · HR 7636 · HR 7144 · HR 7888 · HR 7887 · HR 7618 · HR 7654

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

DREAN 3332 B

Search this part in the full database
