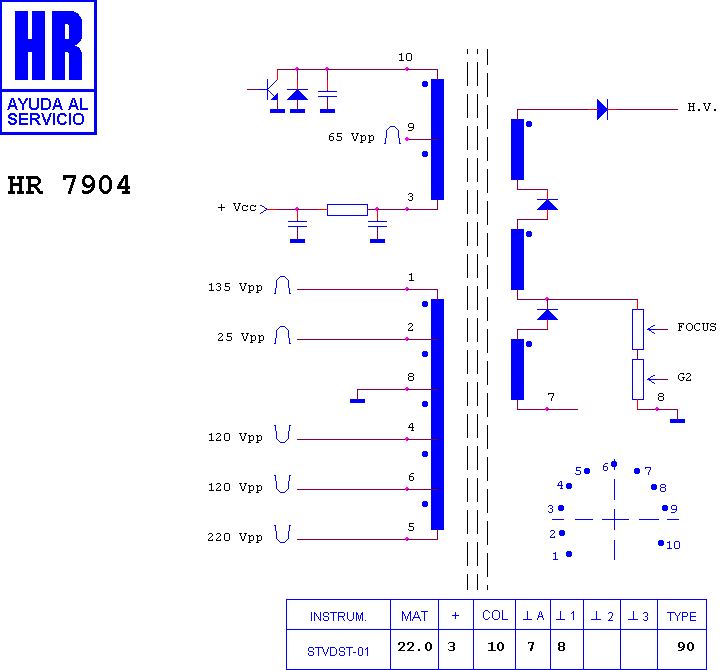

HR 7904

type ST · family 1XP1 · 22 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (2)

154 122 P · 154 122 Q

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7498 · HR 7199 · HR 7654 · HR 7887 · HR 7763 · HR 7890 · HR 7088 · HR 7602 · HR 8274 · HR 80320 · HR 6270 · HR 7636

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (4)

LG - GOLDSTAR CHASIS NC 08X8 · LG - GOLDSTAR CNR 2195 · LG - GOLDSTAR CNR 9195 · LG - GOLDSTAR CNR 9198
