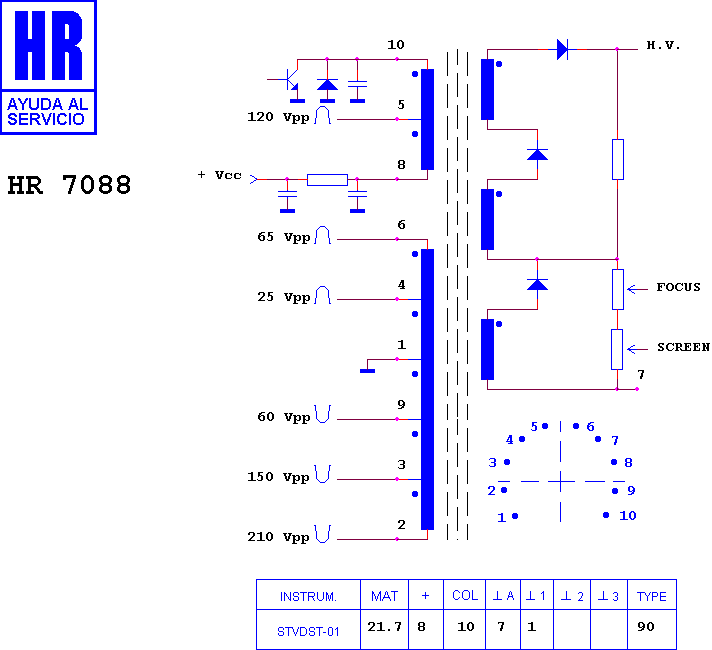

HR 7088

type ST · family 1AP2 · 21.7 kV maximum anode voltage · 90° deflection · 2 windings · 320 g

Manufacturer equivalents (5)

1105.0677 · DS 07 · DS 7 · HR 7088 · ME/6037-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7144 · HR 7581 · HR 7541 · HR 7575 · HR 6270 · HR 7092 · HR 7530 · HR 6180 · HR 7317 · HR 8794 · HR 80320 · HR 6254

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

MIVAR 12 90§ · MIVAR 14" 90§ · MIVAR 17 90§ · MIVAR 20 90§
