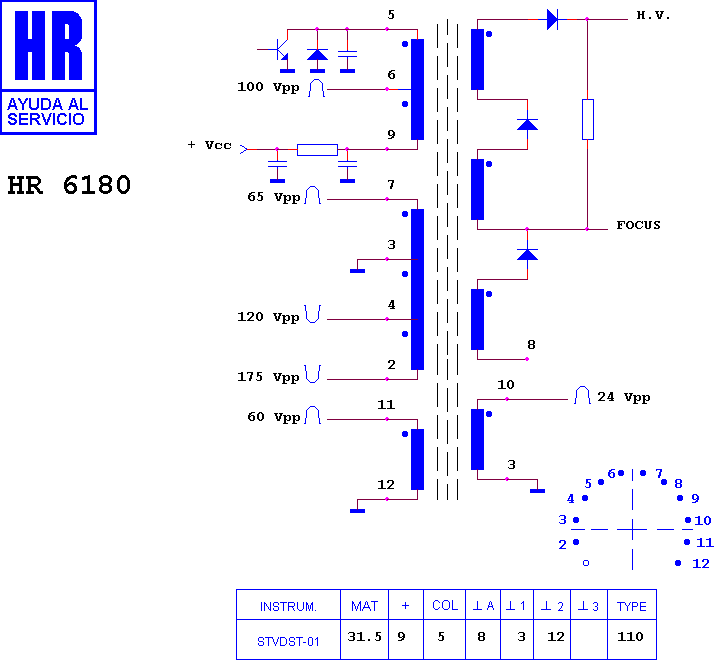

HR 6180

type ST · family 1BS3 · 31.5 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

Manufacturer equivalents (2)

4515 03 11 · D 014/37

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6005 · HR 6023 · HR 8390 · HR 6700 · HR 6257 · HR 8388 · HR 6453 · HR 6270 · HR 8769 · HR 6358
