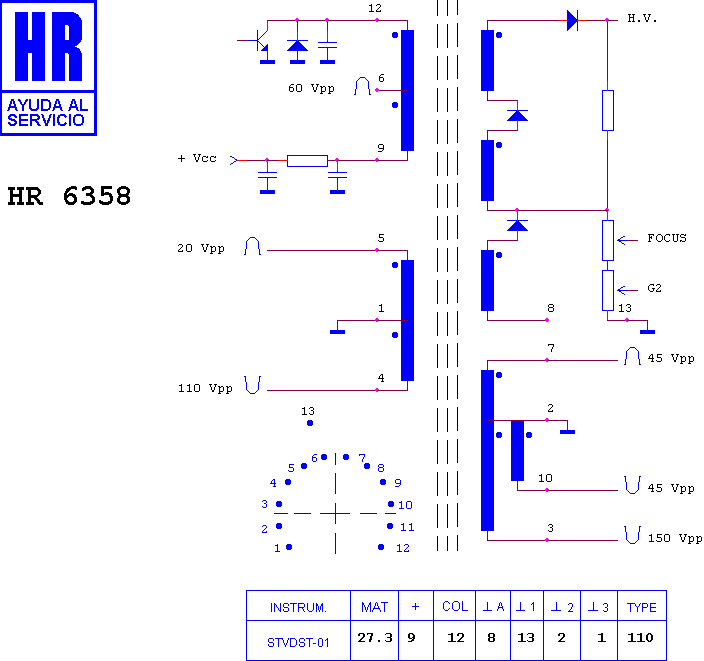

HR 6358

type ST · family 1BP1 · 27.3 kV maximum anode voltage · 110° deflection · 5 windings · 416 g

Manufacturer equivalents (6)

1182.0071 · 1182.0077 · 1182.0737 · 946416 A · HR 6358 · ME/6350-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6180 · HR 7265

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

ULTRAVOX MONITOR 33"
