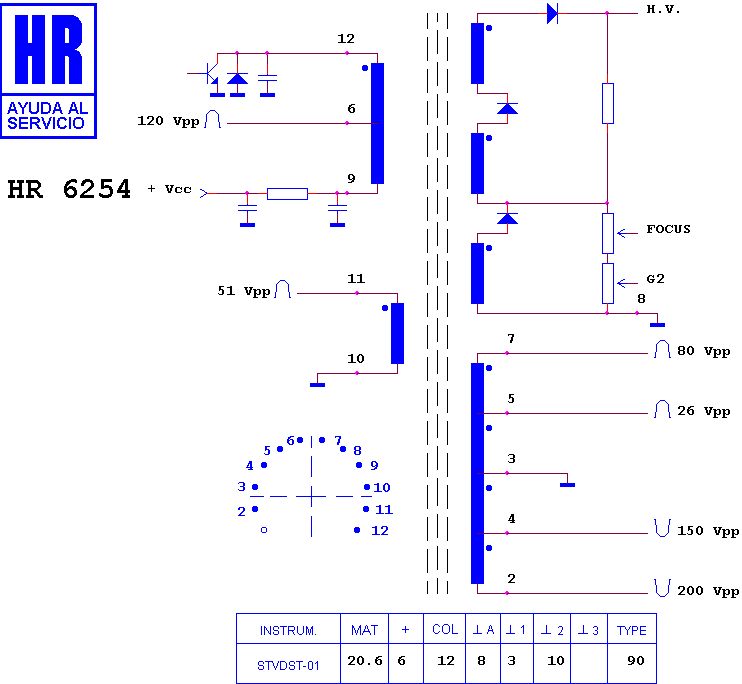

HR 6254

type ST · family 1BP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

Manufacturer equivalents (5)

003331123 · D 297/37 · FAT 3597 · RO 110 · TR 110

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7088 · HR 6180 · HR 7541 · HR 6032 · HR 7092 · HR 7636 · HR 7530 · HR 7888 · HR 7887 · HR 7324 · HR 7280 · HR 7274

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (13)

MIVAR 14 C 3 V · MIVAR 14 C 4 V · MIVAR 15 C 1 V · MIVAR 15 C 2 V · MIVAR 16 C 3 L · MIVAR 16 C 3 V · MIVAR 16 C 4 L · MIVAR 16 C 4 V · MIVAR 20 C 5 L · MIVAR 20 C 5 LM · MIVAR 20 C 5 M · MIVAR 20 C 6 L · MIVAR 21 C 1 L
