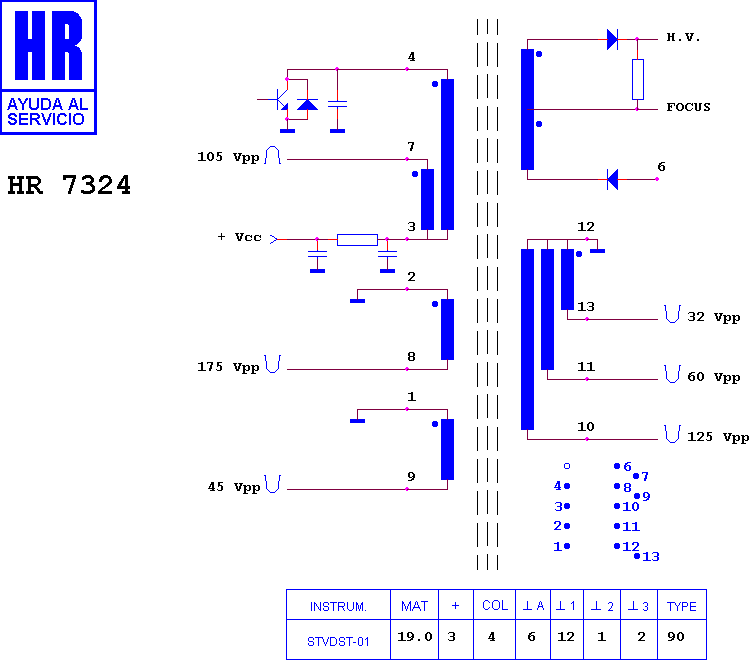

HR 7324

type ST · family 1OS1 · 19 kV maximum anode voltage · 90° deflection · 7 windings · 297 g

Manufacturer equivalents (5)

0-2223-077 · 047.810028 · 2223077 · AT 90/25/23 · KN 35052 N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7144 · HR 7235 · HR 6254 · HR 6180 · HR 7088 · HR 7268 · HR 8301 · HR 7280 · HR 7645

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control
