HR 7645

type ST · family 1YP · 23.2 kV maximum anode voltage · 90° deflection · 4 windings · 404 g

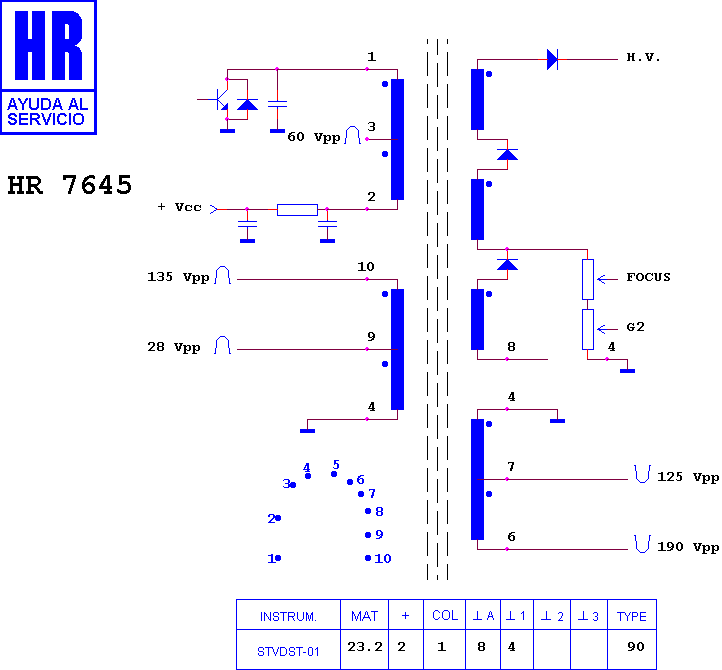

Schematic diagram for HR 7645
schematic

Manufacturer equivalents (1)

154 179 Z

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7970 · HR 8087 · HR 7978 · HR 7439 · HR 8088 · HR 8928 · HR 7960 · HR 8605 · HR 7881 · HR 8096 · HR 7457 · HR 7830

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

AIKO ATV 6800 S

Search this part in the full database
