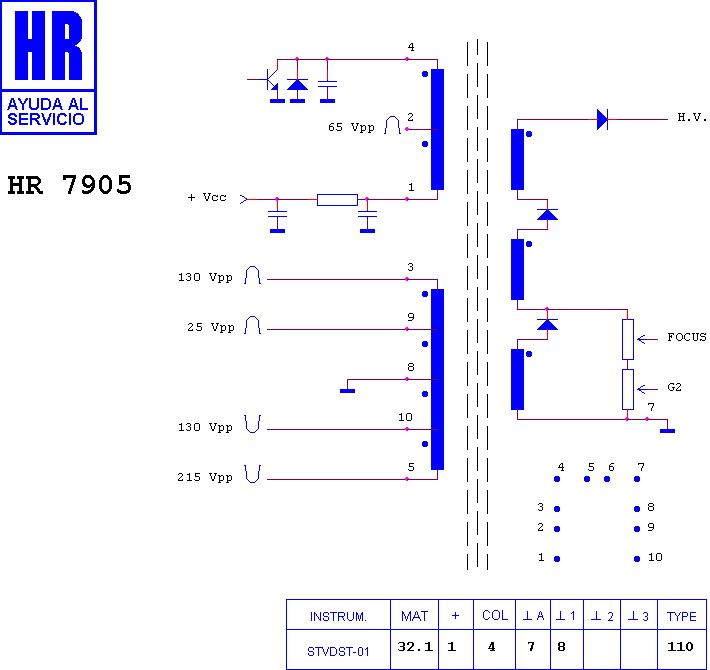

HR 7905

type ST · family 1ZP · 32.1 kV maximum anode voltage · 110° deflection · 3 windings · 308 g

Manufacturer equivalents (2)

043220026 · 3220026

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7697 · HR 7676 · HR 8596 · HR 8217 · HR 80116 · HR 6585 · HR 80091 · HR 8251 · HR 8220 · HR 7892 · HR 8833 · HR 8520
