HR 6022

type ST · family 1BS1 · 21.4 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

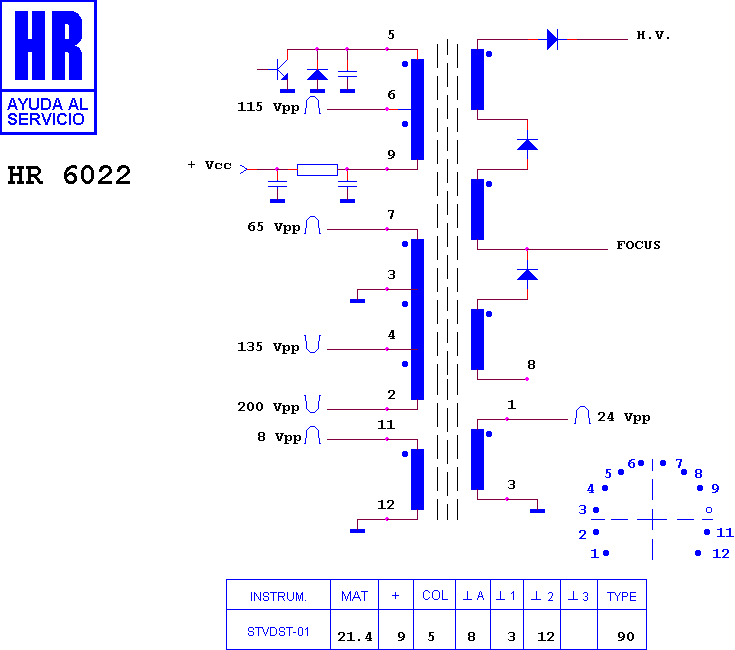

Schematic diagram for HR 6022
schematic

Manufacturer equivalents (4)

266-014419 · 266-14419 · 276-014419 · 276-14418

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7147 · HR 6127 · HR 7058 · HR 7996 · HR 6479 · HR 8087 · HR 7983 · HR 7444 · HR 7734 · HR 6009 · HR 7830 · HR 8607

Search this part in the full database
