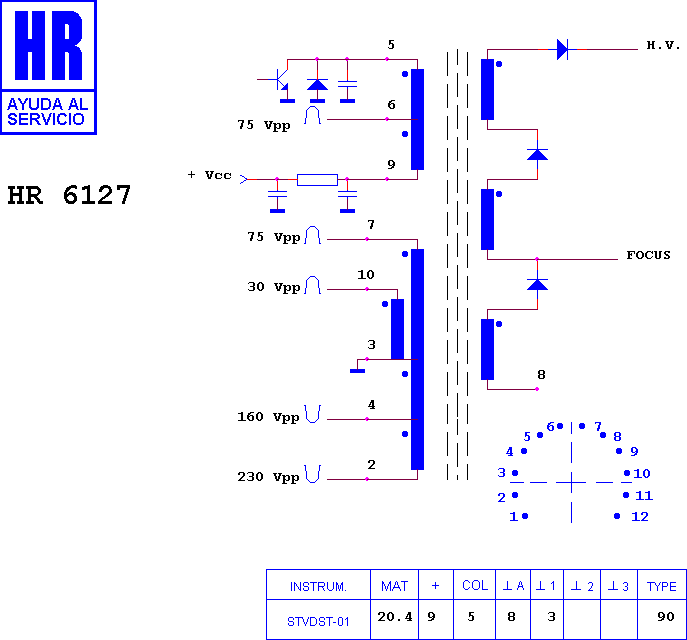

HR 6127

type ST · family 1BS1 · 20.4 kV maximum anode voltage · 90° deflection · 4 windings · 412 g

Manufacturer equivalents (1)

243.8001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7147 · HR 6090 · HR 6022 · HR 7921 · HR 8135 · HR 7416 · HR 80294 · HR 7073 · HR 8455 · HR 6555 · HR 7597 · HR 8820

Search this part in the full database
