HR 7921

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 292 g

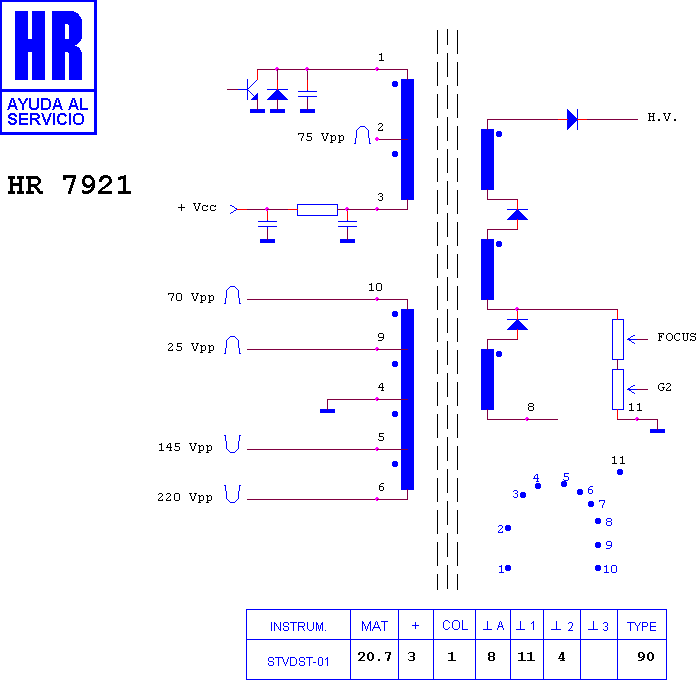

Schematic diagram for HR 7921
schematic

Manufacturer equivalents (6)

156 375 H · 3122 138 20470 · 3122 138 20471 · 3122 138 20472 · OV 2094/20470 · OV 2094/20471

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8135 · HR 7908 · HR 8455 · HR 7997 · HR 8143 · HR 7910 · HR 7808 · HR 7721 · HR 7659 · HR 8263 · HR 8820 · HR 7660

Fitted to (3)

GOLDI CX 14 A 21 XP · GOLDI CX 16 A 21 XP · GOLDI CX 20 A 21 XP
