HR 8135

type ST · family 1XP1 · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

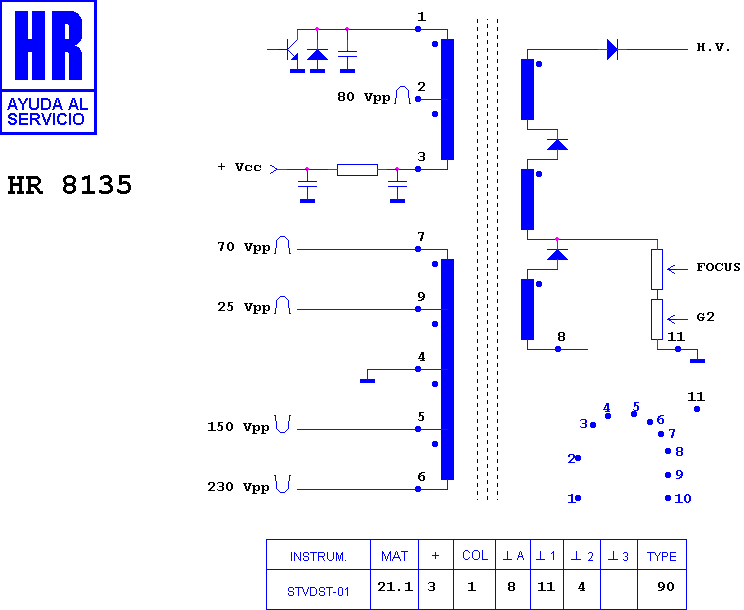

Schematic diagram for HR 8135
schematic

Manufacturer equivalents (2)

154 177 A · 90253.972

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7908 · HR 7910 · HR 7997 · HR 7808 · HR 8455 · HR 8143 · HR 7721 · HR 7921 · HR 7660 · HR 7659 · HR 7856 · HR 7597

Fitted to (3)

DESMET 2454 G · GOLDSTAR - LG CLT 2191 · KAISUI 9220
