HR 8455

type ST · family 1XP1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

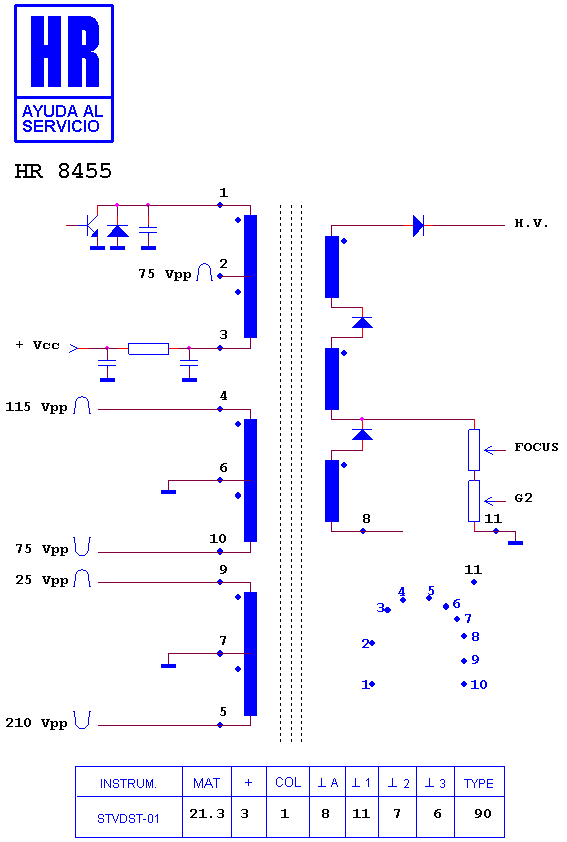

Schematic diagram for HR 8455
schematic

Manufacturer equivalents (2)

154 380 A · 7 GVZ 1079

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7908 · HR 7997 · HR 7910 · HR 8142 · HR 7808 · HR 7921 · HR 8135 · HR 7659 · HR 7018 · HR 80078 · HR 7660 · HR 7585

Fitted to (2)

CROWN CTV 1449 R · CROWN TC 1449 R
