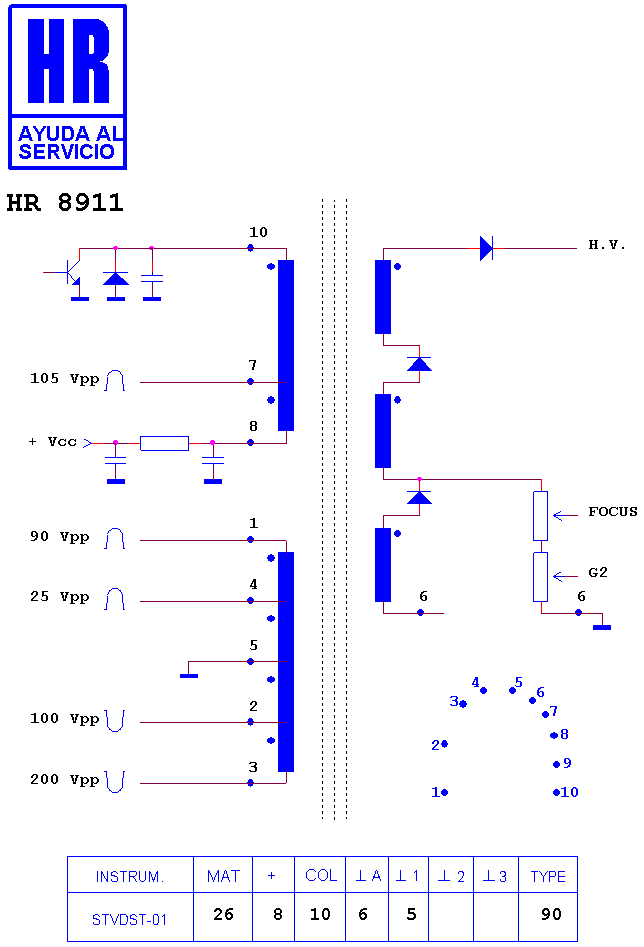

HR 8911

type ST · family 1XP1 · 26 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

Manufacturer equivalents (2)

BSC 25-5203 · BSC 25-5303

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8677 · HR 7439 · HR 7829 · HR 7983 · HR 8915 · HR 8358 · HR 7648 · HR 7783 · HR 7687 · HR 7726 · HR 7791 · HR 7918

Fitted to (2)

AKAI CTT 212 NTF E 8 · SANSUI SV 2102 M
