HR 7783

type ST · family 1XP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

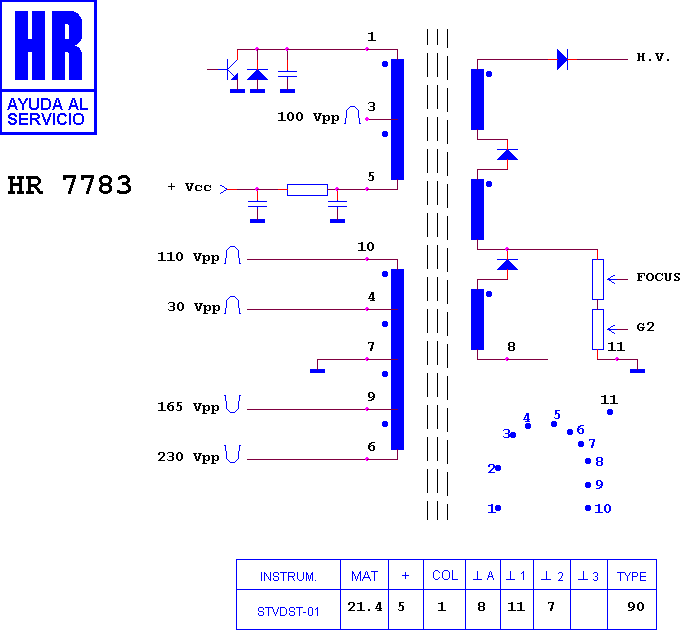

Schematic diagram for HR 7783
schematic

Manufacturer equivalents (1)

FCK 20 B 003

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7518 · HR 7687 · HR 7464 · HR 7791 · HR 8094 · HR 7918 · HR 8296 · HR 8472 · HR 7648 · HR 8140 · HR 8677 · HR 7829

Fitted to (6)

FUNAI 2000 T MK 8 · FUNAI CHASIS MK 8 · FUNAI CHASIS MK 8 20" · FUNAI TV 2000 T MK 8 · HYPER 2000 T MK 8 · HYPER CHASIS MK 8
