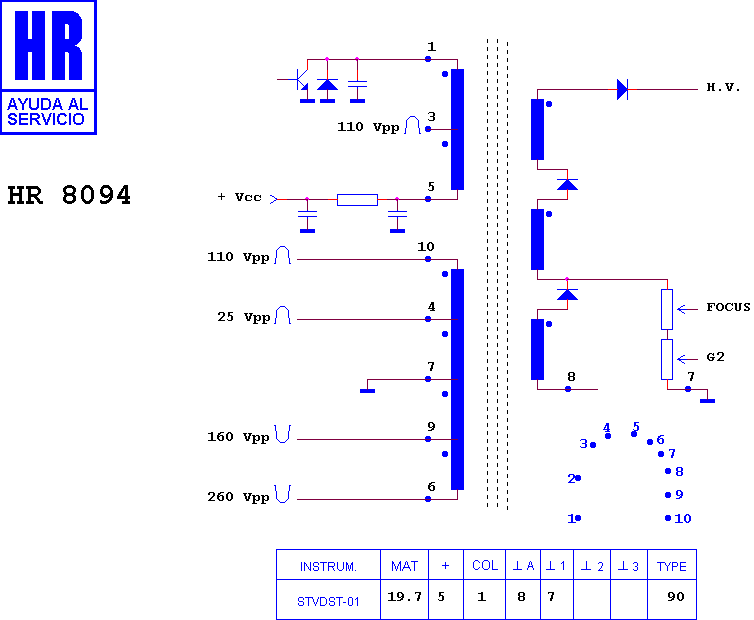

HR 8094

type ST · family 1XP1 · 19.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

FCM 20 B 003

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7850 · HR 8773 · HR 7791 · HR 7783 · HR 8677 · HR 7754 · HR 8142 · HR 7769 · HR 8820 · HR 8540 · HR 7918 · HR 8547

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
