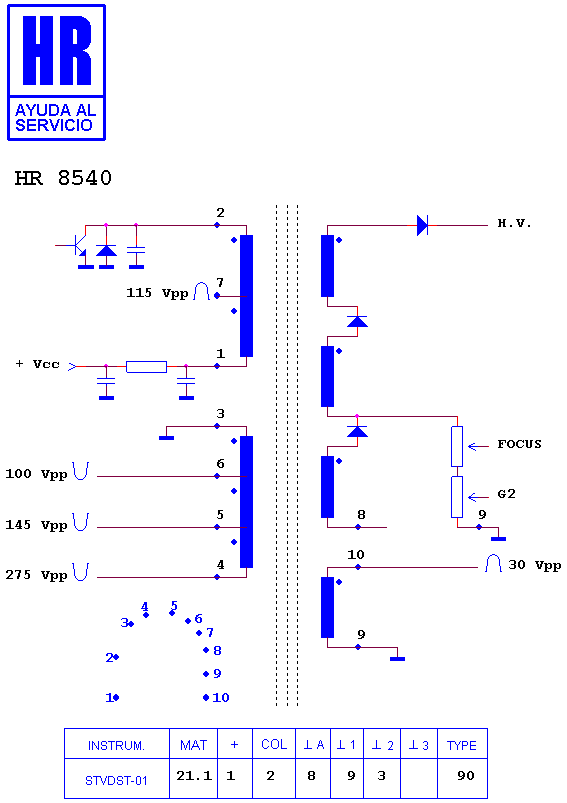

HR 8540

type ST · family 1XP1 · 21.1 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

Manufacturer equivalents (9)

11030133040000 · 1142.5100 · 1142.5100 A · 1142.5100 B · 1142.51002 · 700402208 · 88700402208 · FAT30751 · HR 8540

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8186 · HR 8586 · HR 7856 · HR 8142 · HR 8143 · HR 7563 · HR 7660 · HR 7659 · HR 6619 · HR 7567 · HR 8677 · HR 8922

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

DUMONT CHASIS F 22 · DUMONT DT 7 N 54 S TXT · DUMONT DT 7 N 54 ST TXT · FORMENTI - ADMIRAL CHASIS F 22 20" · FORMENTI - ADMIRAL CHASIS F 22 21" · KNEISSEL KN 2129 · PHOENIX 2 H 37 P/S · PHOENIX TVC 2 H 37 P/S · WESTINGHOUSE 7 N 54 · WESTINGHOUSE CHASIS F 22
