HR 7659

type ST · family 1XP1 · 26.2 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

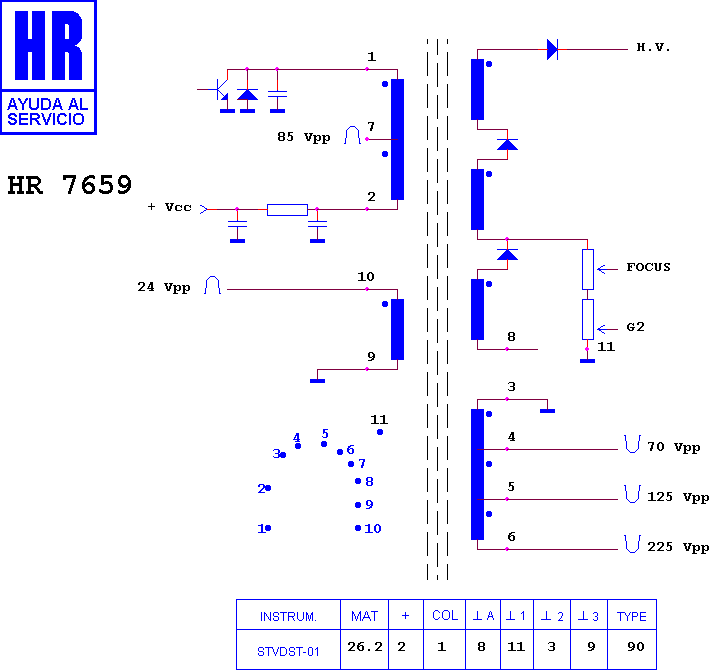

Schematic diagram for HR 7659
schematic

Manufacturer equivalents (14)

08050 · 08051 · 08052 · 08053 · 08054 · 1142.5026 · 140 17038 · 3106 108 08050 · 3106 108 08051 · 3306 130 00852 · 4806 140 17038 · AT 2079/B4 · FAT30570 · KT 2007

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7660 · HR 8820 · HR 8263 · HR 7711 · HR 7858 · HR 8268 · HR 80294 · HR 7789 · HR 8747 · HR 8922 · HR 7669 · HR 7822

Fitted to (5)

PHILIPS 14 GX 1610 · PHILIPS 14 GX 1616 · PHILIPS 14 GX 1618 · PHILIPS CHASIS ANUBIS · PHILIPS CHASIS ANUBIS 2¦ VERSAO
