HR 8349

type ST · family 1XP1 · 17.2 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

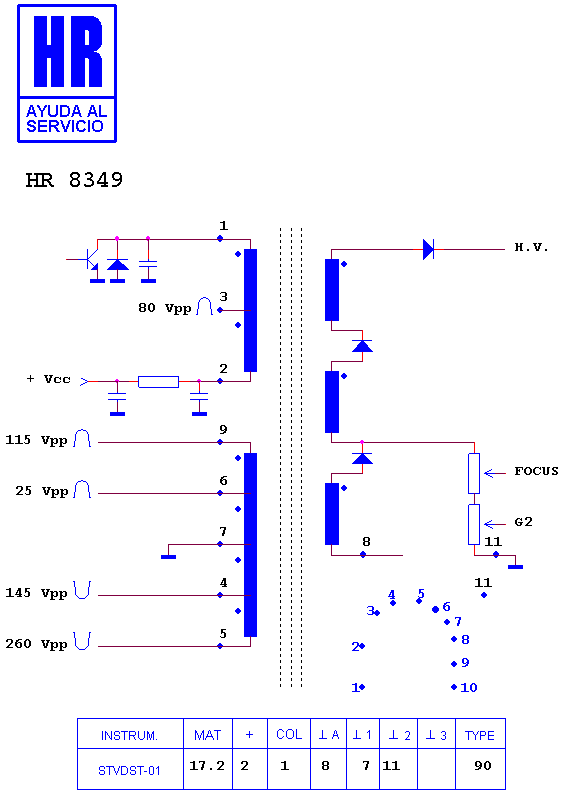

Schematic diagram for HR 8349
schematic

Manufacturer equivalents (7)

003081009 · 154 189 G · FCK 14 B 013 · KFS 60636 · KFS 60636 D · RO 238 · TR 238

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8922 · HR 8268 · HR 7858 · HR 8747 · HR 7669 · HR 7660 · HR 8564 · HR 7659 · HR 8263 · HR 7789 · HR 8696 · HR 8820

Fitted to (11)

HCM ROYAL TV 3715 · PLANTRON 3780 · PLANTRON 3792 · PLANTRON 8037 A · PLANTRON RTV 3792 · PRIMA - PRIME 5180 A · PRIMA - PRIME 5382 A · ROYAL TV 3715 · SAMTRON 3780 MN · YUMATU 3780 · YUMATU 8037 A

Search this part in the full database
