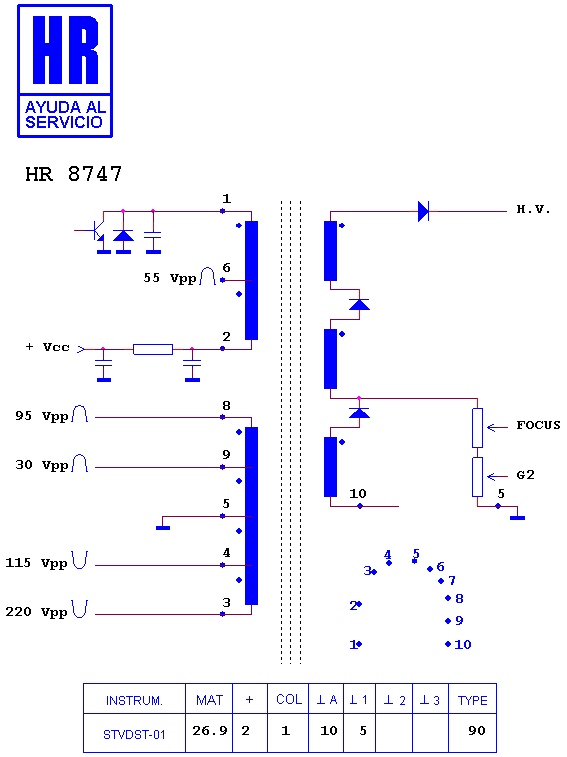

HR 8747

type ST · family 1YP · 26.9 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (8)

043220043 A · 043220043 R · 043220053R · 3220043 · 3220043 A · 3220053 · 3220053R · X-043220053R

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7789 · HR 8263 · HR 8266 · HR 8268 · HR 7660 · HR 8928 · HR 7461 · HR 8349 · HR 8922 · HR 7657 · HR 8820 · HR 7659

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

ORION CTV 2000 W · ORION MD 52 W · ORION TV 2016 W · TOSHIBA 21 V 13 F
