HR 8922

21.8 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

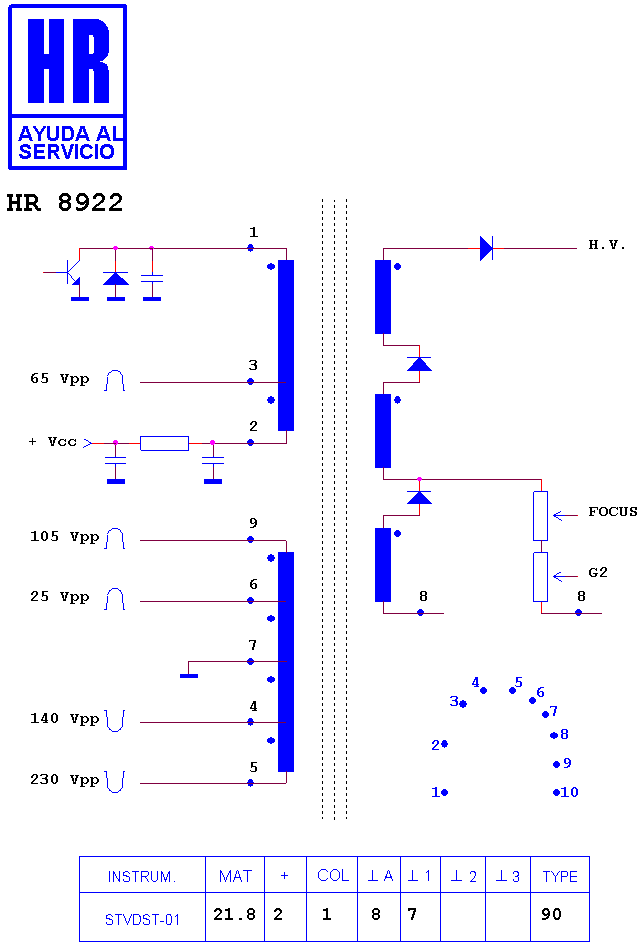

Schematic diagram for HR 8922
schematic (archived)

Manufacturer equivalents (4)

122-5020503 · 122-5020503-19 · JF0501-0503 · JF0501-0503R

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8263 · HR 7711 · HR 8820 · HR 7660 · HR 7657 · HR 7659 · HR 8087 · HR 7854 · HR 7648 · HR 7983 · HR 8696 · HR 8747

Fitted to (9)

PLANTRON 5160 · PLANTRON RTV 5160 · PRECISION PTV 2085 RMS · SANSUI SV 1402 · SANSUI SV 2002 ET · SANSUI SV 2002 IC · SANSUI SV 2102 IC · SANSUI SV 21021 C · SANSUI VC 5118
